Kingspan TR-24 Roof insulation 1.2mx1.2m 100mm/50mm

High performance flat roof insulation

Kingspan Thermaroof TR24 is a high performance insulation with a fibre-free rigid thermoset polyisocyanurate (PIR) core.

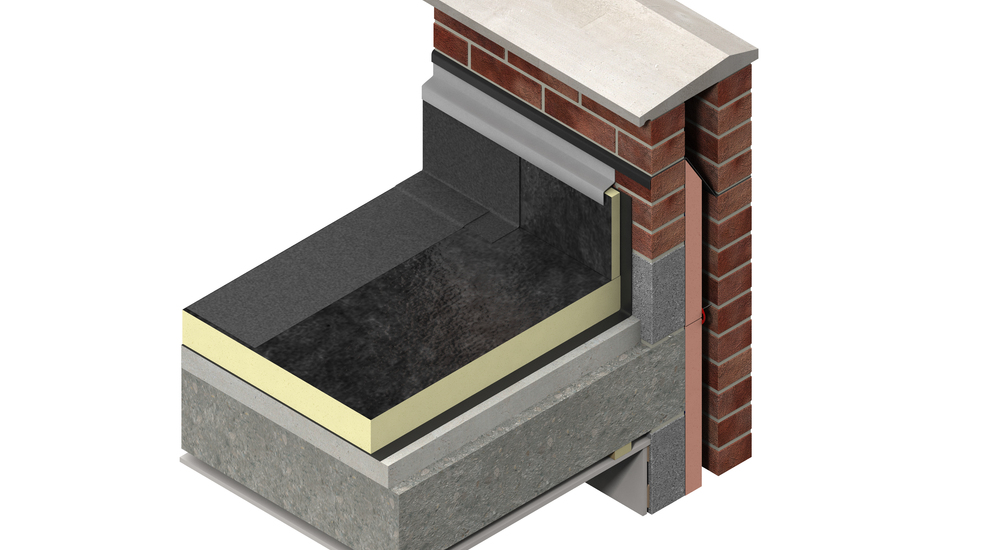

It is suitable for flat roofs waterproofed with partially bonded torch applied multi-layer bituminous waterproofing, and has a thermal conductivity of 0.024 – 0.027 W/mK.

Category: Brand:


Thermal conductivity 0.024 W/mK (≥ 120 mm)
0.025 W/mK (80 – 119 mm)
0.027 W/mK (< 80 mm)
Euroclass F
Compressive strength 150 kPa (at 10% compression)
Upper facing Bitumen coated glass tissue finished with a thermofusible polypropylene fleece
Core High performance rigid thermoset  polyisocyanurate (PIR) insulant manufactured with a blowing agent that has zero Ozone Depletion Potential (ODP) and low Global Warming Potential (GWP)
Lower facing Mineralised glass tissue
Board size 1.2 x 0.6 metres
Weight Approx 4.39 kg/m2 at a thickness of 100 mm

PDF Downloads
